General Controls

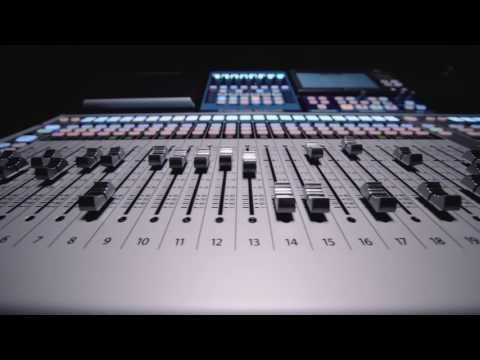

33 touch-sensitive, motorized faders with choice of:
1-to-1 workflow—assign all channels to the top layer, with one fader per input channel
Split-layer workflow—split the faders between inputs and outputs, including DCAs and Aux outputs
RGB Select buttons with user-assignable colors
Transport control
8 user-assignable buttons for mute groups, scenes, and more
All-new Fat Channel controls including
8 scribble strips, encoders, and multicolor buttons
Customizable user layer
7-inch color touchscreen
DAW control (Studio One, MCU, and HUI) coming soon
Inputs and Outputs
40 total inputs
32 channel inputs: 16 mic, 16 mic/line
1 XLR Talkback mic input with recallable XMAX Class A preamp
2 stereo Aux inputs
16 FlexMix outputs: 12 XLR, 4 balanced TRS
4 TRS subgroup outputs
Unbalanced stereo (RCA) tape input and output
Bluetooth™ 4.1 wireless tape input
Stereo AES/EBU digital output
2 XLR (L/R) Main outputs
XLR Main summed mono output
2 TRS monitor outputs
Stereo headphone output
Channels and Buses
32 input channels with recallable XMAX Class A mic preamps
2 stereo aux inputs
26 buses:
16 FlexMixes (can be designated as aux, subgroup, or matrix mixes)
4 dedicated subgroups
4 internal effects sends
Stereo main bus
24 Filter DCAs for easily and flexibly controlling groups of channels
Networking Connections
1 Ethernet control network port
Dynamic, Self Assigned, and Manual IP address modes
1 Ethercon AVB audio network port
Complete ecosystem of AVB solutions, including stageboxes and personal monitor mixers, will be available in 2017
Recording
Onboard 34x34 SD recorder (using Capture™)
38x38 USB recording interface
55x55 AVB recording interface
Signal Processing
Intuitive Fat Channel signal processing on every channel with:
A/B settings comparison
Highpass filter and polarity reverse
Gate/expander with sidechain
Compressor with sidechain
4-band parametric EQ on inputs
6-band parametric EQ on outputs
Limiter
Delay on every input
Delay on every output
Professionally programmed library of presets
Vintage EQ and compressor models available on every input
Passive EQ
Vintage EQ
Tube compressor
FET compressor
8 31-band graphic EQs
4 internal effects buses: combination of reverbs and delays with modern and vintage options
Built-in real-time analyzer and signal generator
Metering/Displays
7-inch color touchscreen
Input meter on every channel
Full-size Fat Channel metering
Input meter
Gate gain reduction meter
Compressor gain reduction meter
Full-size stereo Main output meters
Scenes and Presets
Create, save, and edit up to 100 scenes
Scene management with:
Scene Safe—prevents a scene change from affecting designated “safe” channels
Create, save, and edit channel settings and copy/paste between channels
Advanced channel preset options can save and recall:
Channel type and name
Input settings (preamp, +48V phantom power, polarity, pan)
Fat Channel A & B settings
Bus assignments
Aux and effects send levels and pan
Select button color
8 Quick Scenes
Digital
Studio-quality converters with 115 dB dynamic range
48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)
